Technical details
|
Apparent density, kg/m3 |
18-23 |
|
Core bulk density, kg/m3 |
25-30 |
|
Flammability rating |
G-4 (according to Russian GOST) |
|
Yield from the set, m3 |
15,5-18,5 |
|
Blowing agent |
Water |
System Description

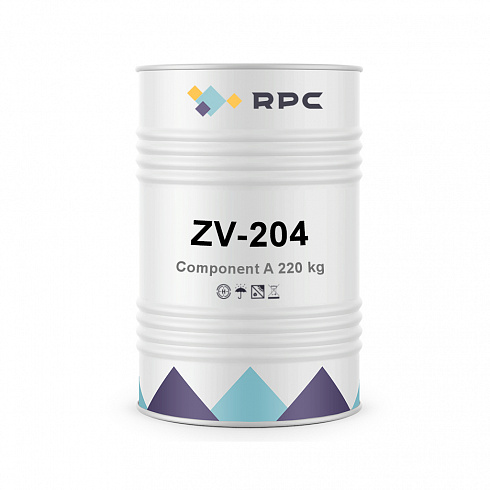

Two-component system for the production of rigid polyurethane foam by injection of the "RPC ZV-204" brand.
The polyol component (component A) of the RPC ZV-204(A) trademark contains polyesters, stabilizers, catalysts, flame retardants, and water.
Isocyanate component (component B) - polymeric diphenylmethane diisocyanate grades: Lupranat M 20 S, Millionate - MR 200, Wannate - PM 200, Desmodur VKS 20 F, Ongronat 2100, etc.
Scope of application
RPK ZV-204 is used for heat and sound insulation of inter-wall spaces.
Physicochemical indicators of components A and B
|
Polyol component (RPC ZV-204(A)) |
Isocyanate component (Component B) |
|
|
Density at 20 °C |
1,00-1,10 g/cm3 |
1,22-1,24 g/cm3 |
|
Viscosity at 20 °C |
120 — 300 mPa·s | 150 — 250 mPa·s |
|
Warranty storage period: |
12 months |
|
Beaker foaming laboratory parameters
|
Parameter name |
Value |
|
Cream time, s |
8 — 20 |
|
Rise time, s |
50 — 70 |
|
Free rise density with free foaming, kg/m3 |
18 — 23 |
|
Component temperature, °C |
22 — 24 |
|
Mixing ratio by volume |
100 на 100 |
Preparatory measures before starting work
- Heat component A to +30 - 35 °C;
- Heat component B to +40 - 50 °C;
- Stir component A with a paddle mixer or in the tank of the filling machine for 60 minutes at 500 - 1000 rpm;
- The isocyanate component (component B) does not require stirring if it has been stored at a temperature not lower than + 15 °C. If the isocyanate component was stored at temperatures below + 15 °C, then slowly heat it up to a temperature not higher than +50 °C;
Precautions and health effects
When processing, it is necessary to take into account safety measures according to TU.
Physical and mechanical properties
|
Parameters |
Value |
Unit of measurement |
Test method |
|
Density (in the core) |
25 — 30 |
kg/m3 |
GOST 17177-94 |
| Прочность при сжатии | 0,11-0,14 |
N/mm2 |
GOST 17177-94 |
|
Thermal conductivity |
0,028-0,032 |
W/(m*°C) |
GOST 7076-99 |
Shelf life
The shelf life of component A is 6 months without opening the drums.
Rights
The data provided in this technical information is based on our current technical knowledge and experience and is believed to be accurate at the time of publication. Nothing in this publication should be construed as a warranty, either expressed or implied. Due to the abundance of factors that can influence the recycling and use of our materials, they do not excuse the recycler from its own testing and experimentation. In all circumstances, it is the user's responsibility to correctly determine the applicability of such information or of the product itself for a specific purpose of the user.
